RPD Ex
Process Fans for Custom System Integration
Process Fans for Explosive Gases and Vapors

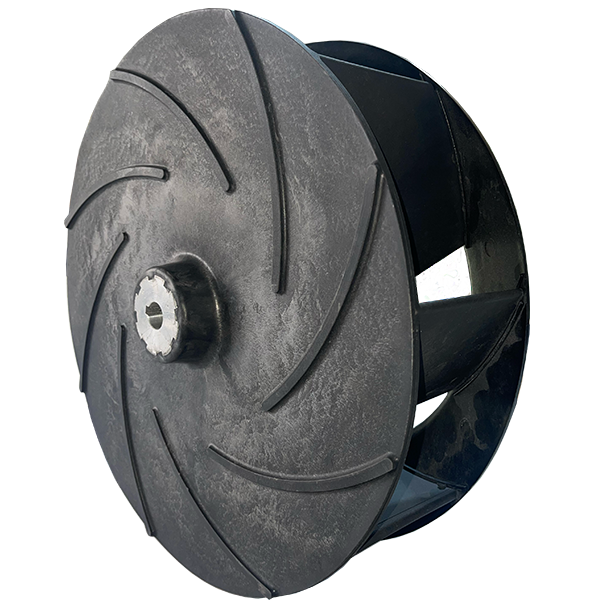

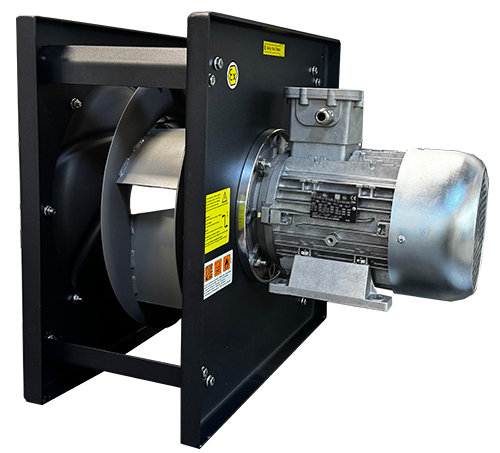

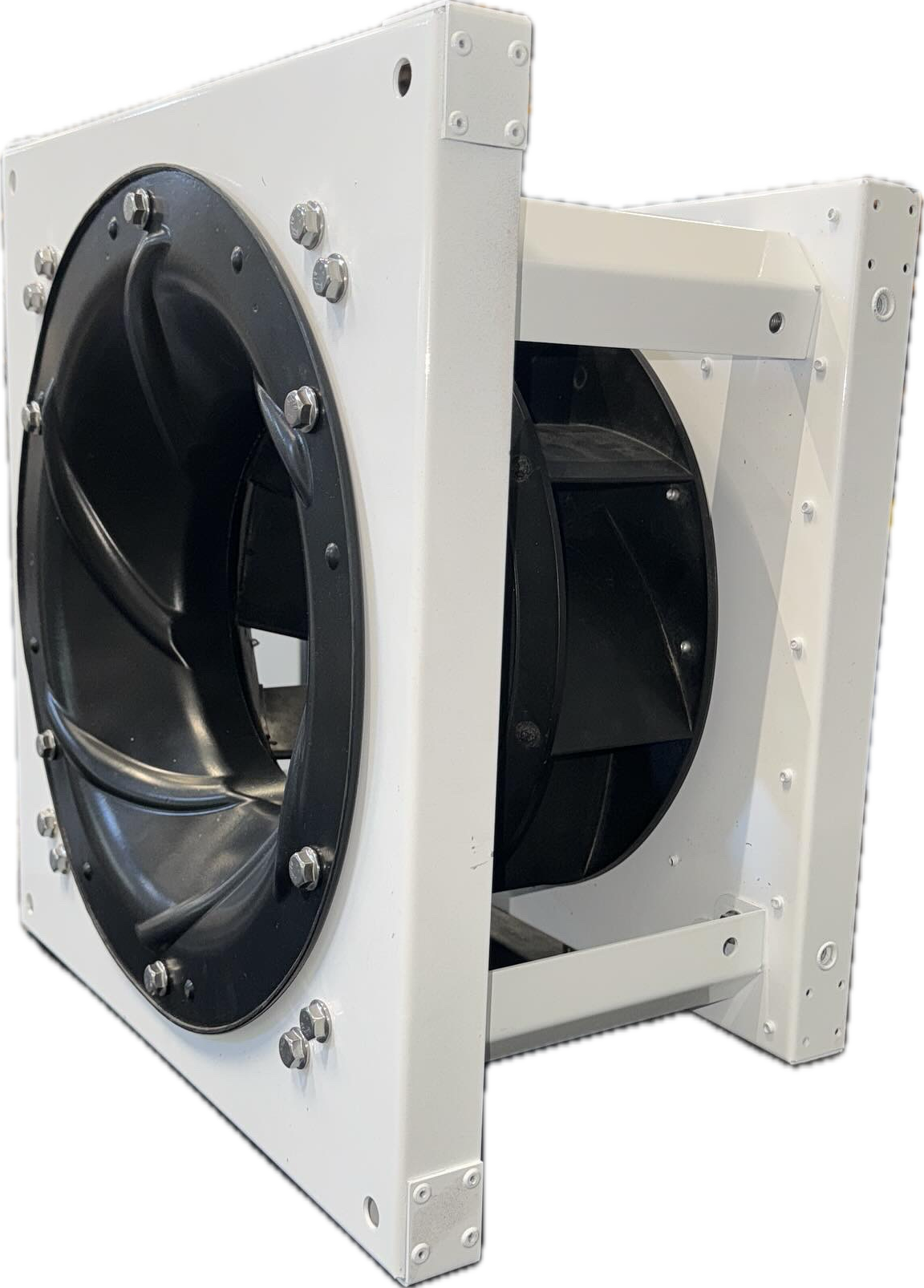

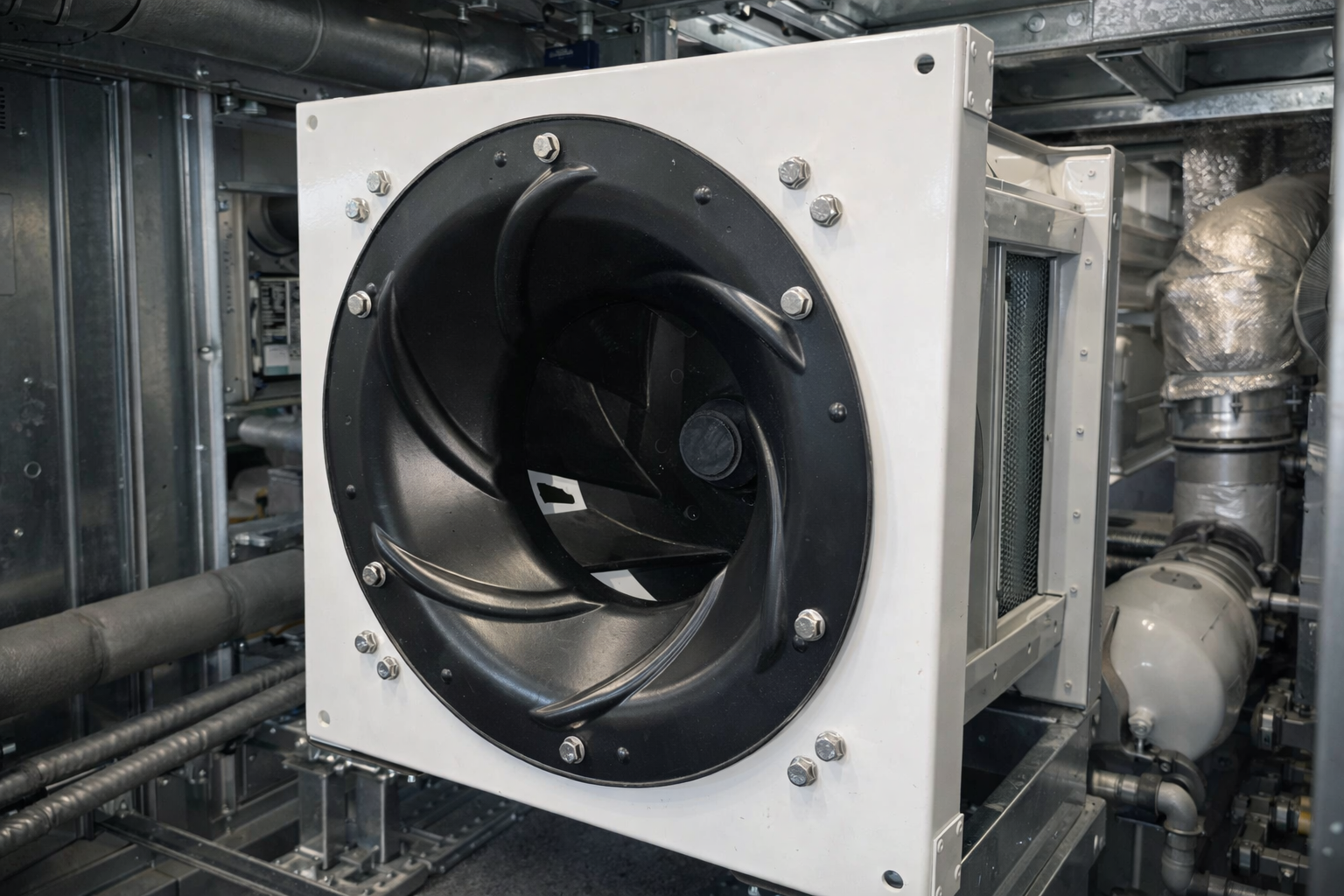

The RPD Ex series offers high-pressure process fan solutions for environments containing explosive gases and contaminated air with low corrosivity. Typical applications include air handling units (AHU), dust extraction systems, fume hoods, and industrial machinery. Featuring backward-curved aerofoil impellers, the fans ensure high efficiency, low noise operation, and reliable performance. Available in aluminum, conductive PP-el, or antistatic materials, depending on application requirements. The robust casing (aluminum or coated carbon steel) is suitable for all mounting positions, with DIN-standard connections for easy installation. Equipped with a high-efficiency, IP65 protected motor, designed for continuous operation (S1). Speed control via frequency inverter only.
| Feature | Standard | Optional |
|---|---|---|
| Atex Maintenance Switch (BSEx) | - | Optional / Can be added |
| Bracket Material | Carbon Steel (ST37) | Aluminum |
| Bracket Material | Carbon Steel (ST37) | AISI 304 / 316L / 316TI |
| Motor Protection Panel (MPK) | - | Optional / Can be added |
| Drive Control Panel (ADV) | - | Optional / Can be added |
| Bracket Surface Protection | Hot Dip Galvanized | C4/C5M Coated |
| Motor Surface Protection | Factory-Applied Coating | C4/C5M Coated |
| Continuous Operating Temperature | +55°C | +100°C (Including Motor) |
Warning!
Click on the model name to select a product. Default selections will be 400V/50Hz.
